Reverso TV

Rotating wall bed with TV panel and storage shelves, ideal for displaying decorative items. For 160x200 cm double mattresses, with a rotating front panel in melamine or lacquered.

Configurator

Discover the available colours in the Sample Book.

Description

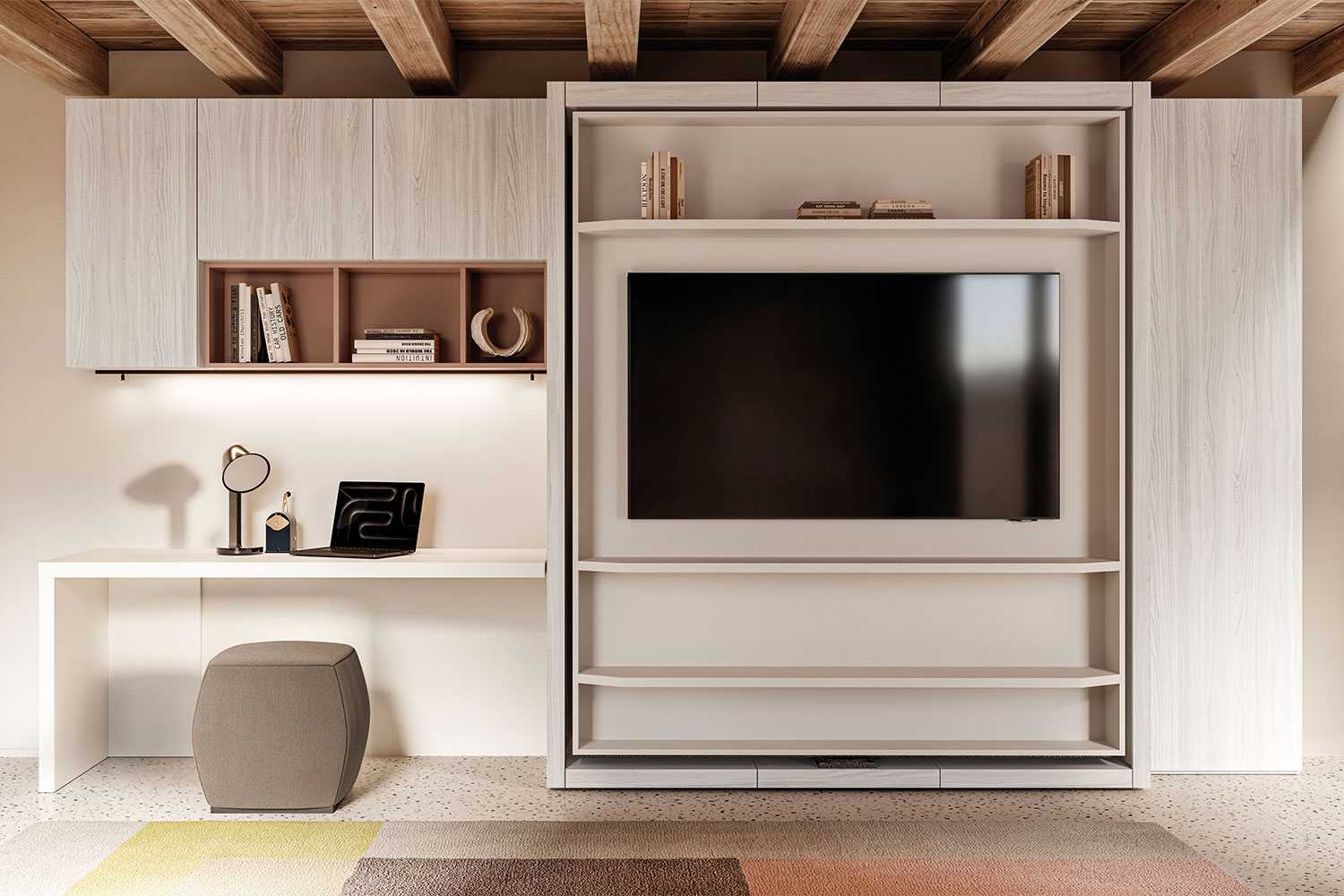

Reverso TV is a rotating wall bed with a TV panel, equipped with storage shelves that are ideal for displaying decor items. Designed to serve different functions depending on which side of the front panel is selected, the swivel mechanism allows the unit to rotate around a central pivot, alternating between a double bed and a practical wall unit with shelves and a TV panel.
At the forefront of space-saving furniture design, Reverso TV features a technologically advanced mechanism that makes it easy to move the 18,5 cm-thick front panel and safely open the sleeping platform thanks to a patented, slow-release lowering mechanism. The bed frame is designed to accommodate a 160 × 200 cm mattress with a height of 18 cm. Designed to be integrated into complex configurations with wardrobes or side bookcases, this unit is available in melamine or lacquered finishes in a range of colours, making it fully modular and adaptable to larger interior design projects.
Designed to revolutionise space management in micro-living spaces and compact apartments, this rotating Murphy bed transforms even the smallest floor plans into functional, elegant living environments. Its innovative swivel mechanism is the ultimate solution for centrally positioned rooms or architectural layouts with narrow walls, where there is no room for furniture or bedside tables on either side. With a single, simple and smooth movement, every available centimetre can be maximised without compromising on comfort or high-end, contemporary design.

Models and Measurements
The Reverso TV Murphy bed is compatible with bed bases measuring cm 160 x 200 and is available in the following sizes:
- standard double bed structure + TV panel: cm 198 d.60 h.232.
Maximum rotation clearance: cm 200.
Maximum depth with open bed: 261,5 cm.

Finishes
Clever Murphy beds are designed to offer tailor-made solutions and highly personalised aesthetics. You can choose the dimensions, layout, accessories, colours and finishes. View the Sample Book or visit the nearest Retailer to experience the quality of the materials first-hand and receive advice from our Interior Designers.

Specifications

Structure
Side panel: th.6 cm.
Top panel: h.6 cm.
Shelves: 176,4 cm w. x 20,5 cm d. x 3 cm th. (10,5 cm projection beyond the recessed front panel).
Swivel front element: th.18,5 cm.
Unit depth: 60 cm.

Bed Base and Mattresses
Bed base: assisted opening, with a mechanism that prevents sudden dropping and accidental opening. Maximum load: 200 kg for the 160 cm bed base.
Mattress: standard double: 160x200 cm, h.18 (maximum permitted height), maximum weight: 30 kg.
Models available:
Silver: biconical Bonnell spring mattress, 7x21 (single version), diameter 2,2 mm (300 springs in the double version). Internal felt 1300 g/sq m. Watercel, density 25 - 1 cm per side. Perimeter supports, diameter 25 – 4,5 cm. Fixed cover in Cotton Soft. Thermally bonded carded padding 300 g/sq m.
Elite: pocket spring system, 11x30 (single version), diameter 2 mm (700 springs in the double version). Internal felt 700 g/sq m. Watercel, density 30 E – 1 cm on the summer side. Perimeter supports. Removable hypoallergenic (Amicor) cover. The fixed upholstery is made of Cotton Plus fabric; together with the Ecotton padding, it provides a breathable, hypoallergenic and dust-mite-resistant support with high levels of comfort and softness. The cover is equipped with air vents for optimal purification of the air inside.

Assembly
The product is supplied disassembled, complete with assembly instructions. Wall anchoring using the dedicated hardware provided is mandatory. Anchoring to plasterboard walls does not guarantee secure fastening. 8 cm of clearance in height is required for installation of the mechanism.
