Oryx

Single horizontal Murphy bed, also suitable for 120 and 140x200 cm mattresses. In melamine or lacquered in a wide range of colours, with optional LED lighting and power outlets.

Configurator

Discover the available colours in the Sample Book.

Description

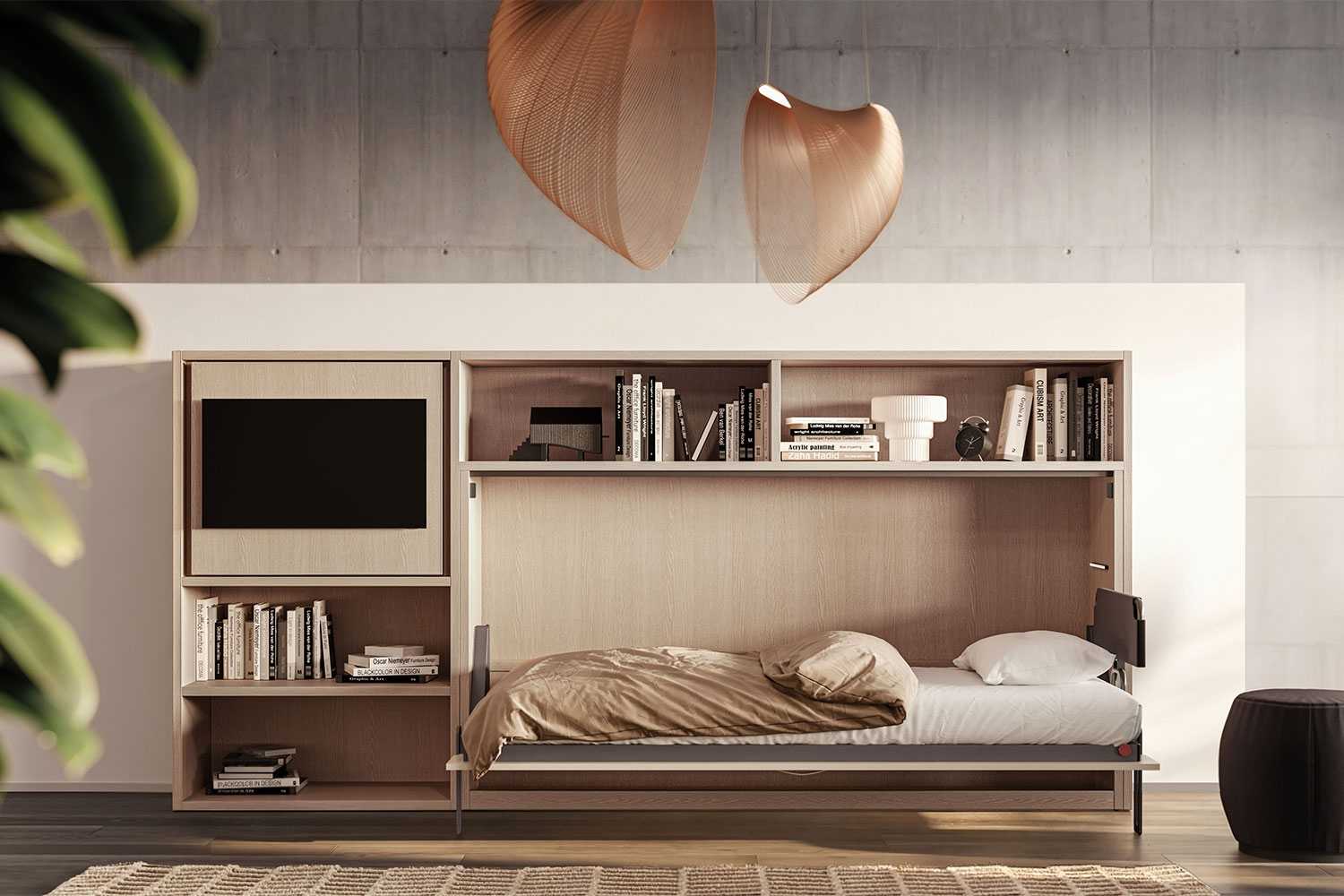

Oryx is a single horizontal Murphy bed, perfect for optimising space and making the most of every centimetre in multi-use teenagers’ bedrooms, guest rooms or second homes. The unit is designed to integrate seamlessly with larger compositions, such as bookcases or overbed units with storage compartments.
Also compatible with mattresses measuring 120 and 140x200 cm, Oryx is a Murphy bed unit featuring a slow-release mechanism in a dark grey finish that prevents abrupt movement when opening and closing the bed compartment. This space-saving furniture unit is highly compatible with modular systems: the wall bed can be integrated into bookcases with side panels and column units with open compartments. Furthermore, a TV unit can be placed alongside it, or customised overbed systems with freestanding storage units can be added to optimise the available vertical space. The shell of the unit, available in depths of 32,8 or 45,6 cm, serves as the bed compartment and can be equipped with power outlets, built-in switches, and side-mounted LED lights.
Oryx, which can be used on its own or as part of complex modular compositions, is customisable in terms of finishes and optional features. This makes it an ideal solution for furnishing compact spaces that require a place to sleep, extractable when needed.

Models and Measurements
The Oryx Murphy bed is compatible with bed bases measuring cm 90x200, cm 120x200 and cm 140x200 and is available in the following sizes:
- single bed structure: cm 215 / 219 (optional) d.32,8 / 45,6 (optional) h.113,3 / 115,5
- small double bed structure: cm 215 / 219 (optional) d.32,8 / 45,6 (optional) h. 143,5 / 145,3
- French double bed structure: cm 215 / 219 (optional) d.32,8 / 45,6 (optional) h. 163,3 / 165,3
Maximum depth with open bed:
- for bed structure d.32,8 cm: 105,8 / 135,8 / 155,8 cm:
- for bed structure d.45,6 cm: 118,6 / 148,6 / 168,6 cm:

Finishes
Clever Murphy beds are designed to offer tailor-made solutions and highly personalised aesthetics. You can choose the dimensions, layout, accessories, colours and finishes. View the Sample Book or visit the nearest Retailer to experience the quality of the materials first-hand and receive advice from our Interior Designers.

Specifications

Structure
Side panel: open-ended, full height, th.3 or 5 cm.
Top panel: compensation strip h.3 or 5 cm, depending on the thickness of the side panel.
The bed unit can be made in different heights:
* for a 90 x 200 cm bed base: h.113,3 / 115,3 standard height; h.149,2 / 232 / 241,2 / 259,6 with an integrated full-height bookcase (only with 3 cm-thick side panels).
* for a 120 x 200 cm bed base: h.143,5 / 145,3 standard height; h.232 / 241,2 / 259,6 (optional) with an integrated full-height bookcase (only with 3 cm-thick side panels).
* for a 140 x 200 cm bed base: h.163,3 / 1654,3 standard height; h.232 / 241,2 / 259,6 (optional) with an integrated full-height bookcase (only with 3 cm-thick side panels).

Bed Base and Mattresses
Bed base: assisted opening, with a mechanism that prevents sudden dropping and accidental opening, in Dark Grey finish. Maximum load: 100 kg for the 90 cm bed base and 150 kg for the 120 and 140 cm bed bases.
Mattress:
* single: 90x200 cm, h.18 (maximum permitted height), maximum weight: 20 kg
* small double: 120x200 cm, h.18 (maximum permitted height), maximum weight: 23 kg
* French double: 140x200 cm, h.18 (maximum permitted height), maximum weight: 25 kg.
Models available:
* Silver: biconical Bonnell spring mattress, 7x21 (single version), diameter 2,2 mm (300 springs in the double version). Internal felt 1300 g/sq m. Watercel, density 25 – 1 cm per side. Perimeter supports, diameter 25 – 4,5 cm. Fixed cover in Cotton Soft. Thermally bonded carded padding 300 g/sq m.
* Elite: pocket spring system, 11x30 (single version), diameter 2 mm (700 springs in the double version). Internal felt 700 g/sq m. Watercel, density 30 E – 1 cm on the summer side. Perimeter supports. Removable hypoallergenic (Amicor) cover. The fixed upholstery is made of Cotton Plus fabric; together with the Ecotton padding, it provides a breathable, hypoallergenic and dust-mite-resistant support with high levels of comfort and softness. The cover is equipped with air vents for optimal purification of the air inside.

Features
Internal shelf: 209 cm, d.10; only for use with a depth of 45,6 cm.

Optional
LED light: 28 cm, to be mounted on the side panel, with touch dimmer for switching on and 5W/24V power supply. For the motorised version, a pair of RH/LH lights is available.
Socket and switch: recessed, complete with wiring for the headboard shelf, 10/16A 250V socket – 16A 220V switch, for elements with a depth of 45,6 cm.

Assembly
The product is supplied disassembled, complete with assembly instructions. Wall anchoring using the dedicated hardware provided is mandatory. Anchoring to plasterboard walls does not guarantee secure fastening.
